Inside an Engine Build: What Actually Gets Checked Before It Goes Back Together

Most people never see the inside of their engine. When a customer from Hemet approved a full build, we photographed the parts on the bench, because the difference between a real rebuild and a quick reseal is visible if you know what to look at.

Quick answer: A build is not just new gaskets. The block gets measured, the head gets checked for straightness and cracks, and the worn parts get replaced whether or not they were the thing that failed. Anything less and you are rebuilding it twice.

What We Saw

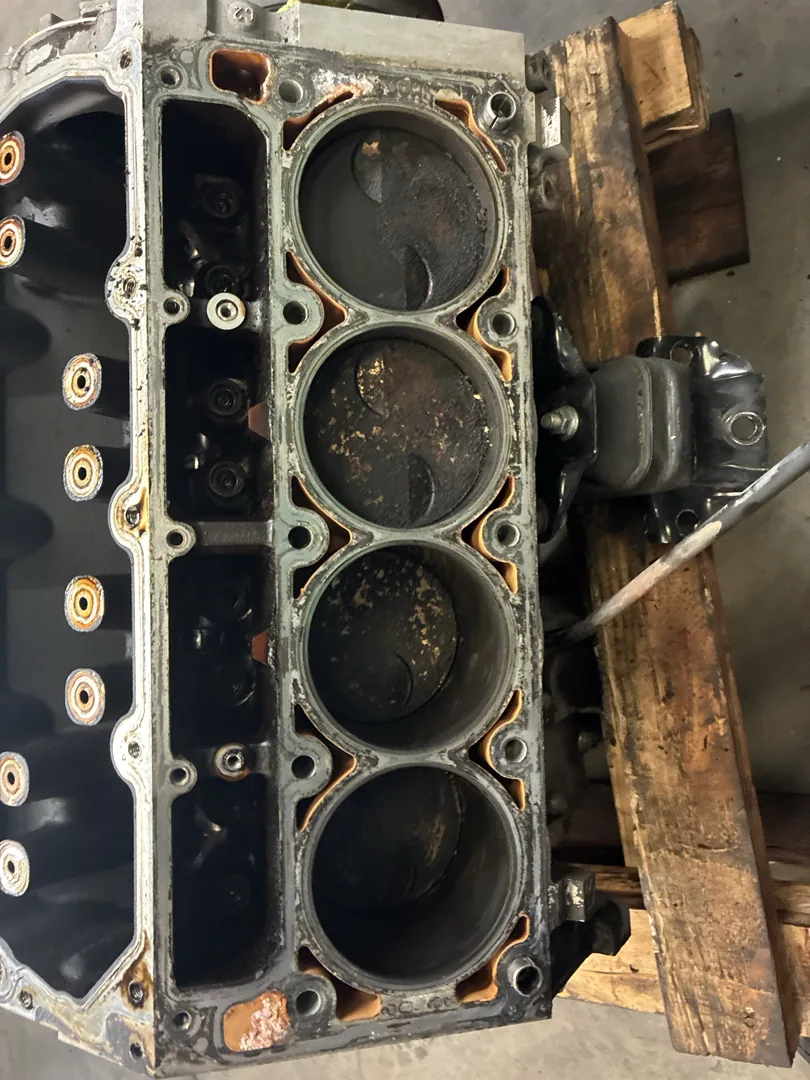

Stripped engine block on the bench with the cylinder bores exposed — Block stripped down to bare metal

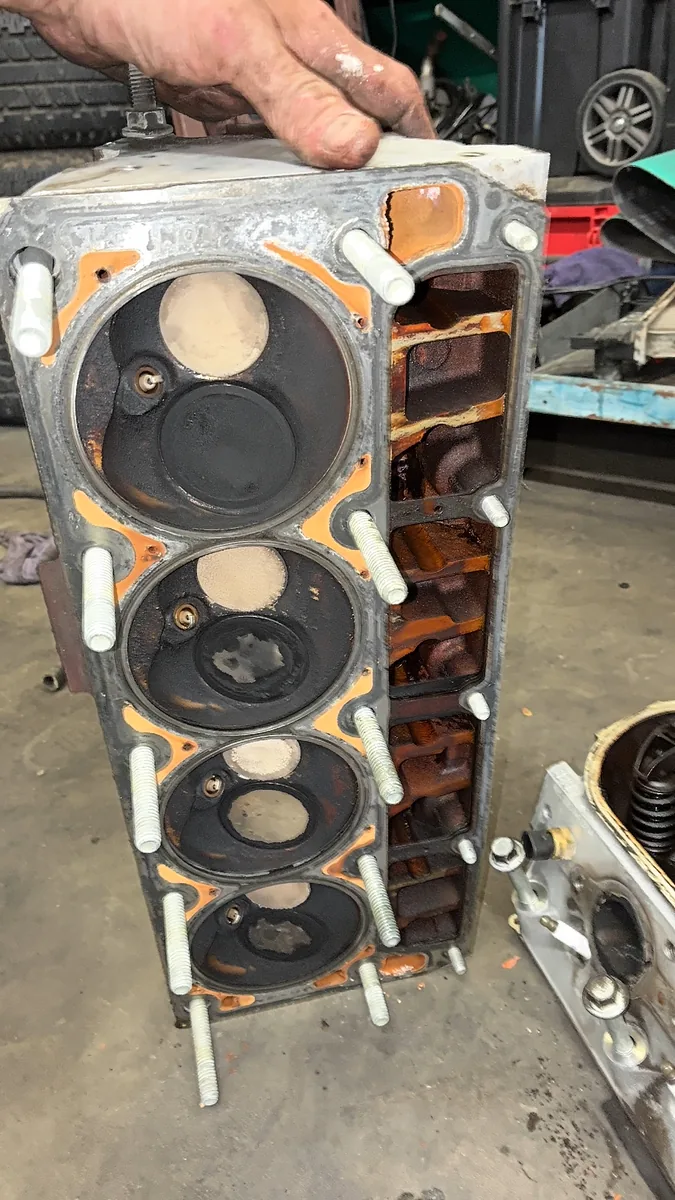

Cylinder head removed from the engine and set up for inspection — The head off, ready to be checked

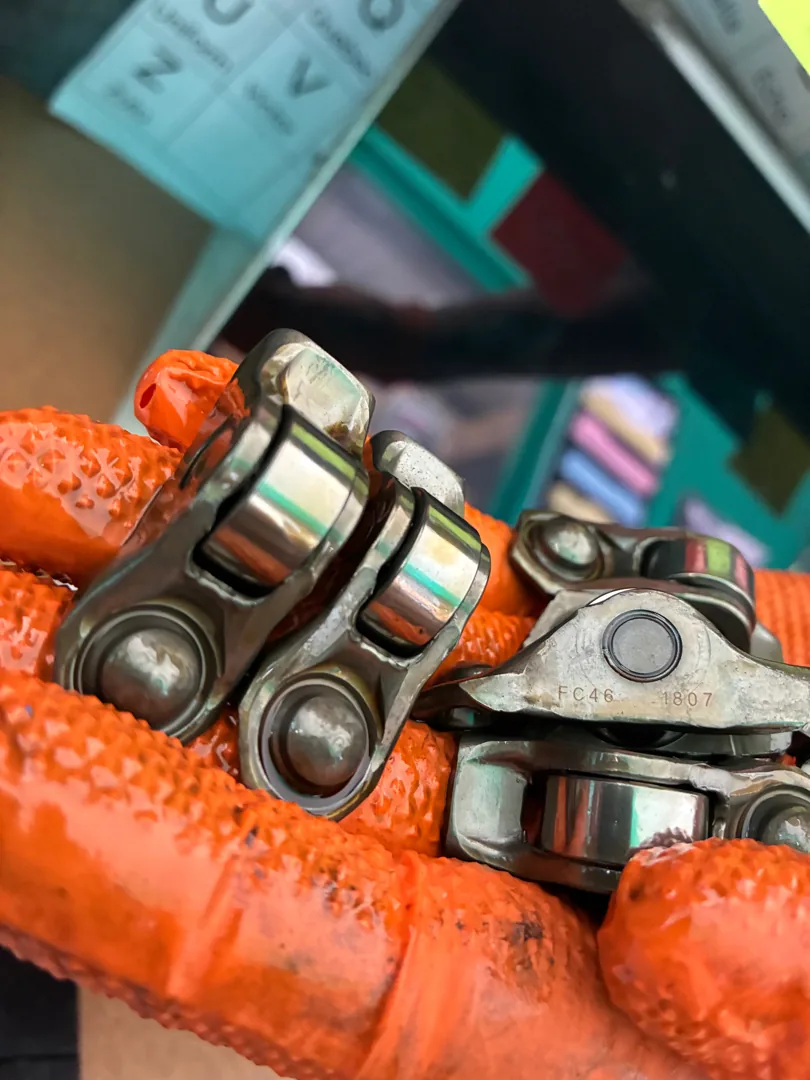

Worn rocker arms removed from an engine during a build — Rocker arms out. Wear here is easy to miss

What We Measure on the Block

Bores get measured for taper and out-of-round, not eyeballed. An engine can look clean and still be worn past the point where new rings will seal. The deck gets checked for flatness, because a warped deck will push out a head gasket no matter how good the gasket is.

Every passage gets cleaned out. Casting sand, old sealant and sludge all end up somewhere, and the somewhere is usually a bearing.

What Condemns a Cylinder Head

Warp beyond the manufacturer's limit. A skim can save it, up to a point, and past that point it is scrap.
Cracks between the valve seats, which is common on engines that have overheated even once.
Valve guide wear, which burns oil quietly and shows up as a smoky start after the car sits.
Seat recession, where the valve sinks into the head and you lose compression you cannot get back by adjusting anything.

Why It Takes Longer Than a Swap

Dropping in a used engine is faster and sometimes it is the right call. We will tell you when it is. But a used engine comes with somebody else's unknown history, and the warranty on it is usually short.

A build takes longer because the measuring is the job. The assembly is the easy part. If a shop quotes you a rebuild that takes two days, ask what got measured.

Supercanic tip: Ask to see the old parts. Any shop doing this work properly will have them on the bench and will be glad to walk you through what failed. Call or text (951) 644-1599.
