Quick answer. A 2005 Mercedes E55 AMG with 123,318 miles came in for a smoke test. Our tech filled the intake with smoke and marked the joint where the throttle body meets the intake. The job then replaced two throttle body gaskets. The bill was $311.38.
Recap Up Front
- A smoke test fills the intake with smoke so a leak shows where it is.
- Our tech circled the throttle body joint on the video.
- The job replaced two throttle body gaskets at $5.69 each.
- The bill was $311.38: $150 smoke test, $150 labor and $11.38 in gaskets.
Read our guides a lot? Star Supercanic as a source in Google and our new posts show up more often in your Top Stories.
What a Smoke Test Does
An engine pulls air in through one path. Any air that sneaks in somewhere else is a leak. The computer does not know about that air, and the engine runs off.
You cannot see air. So we use smoke. The machine pushes harmless smoke into the intake. Wherever it comes out, that is the leak.

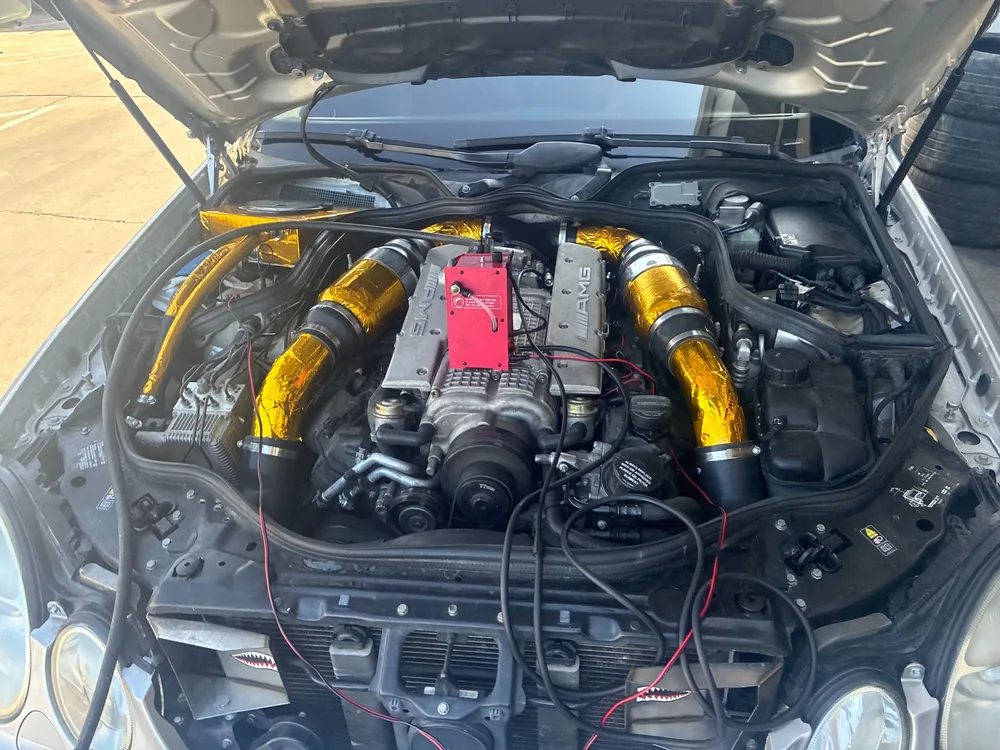

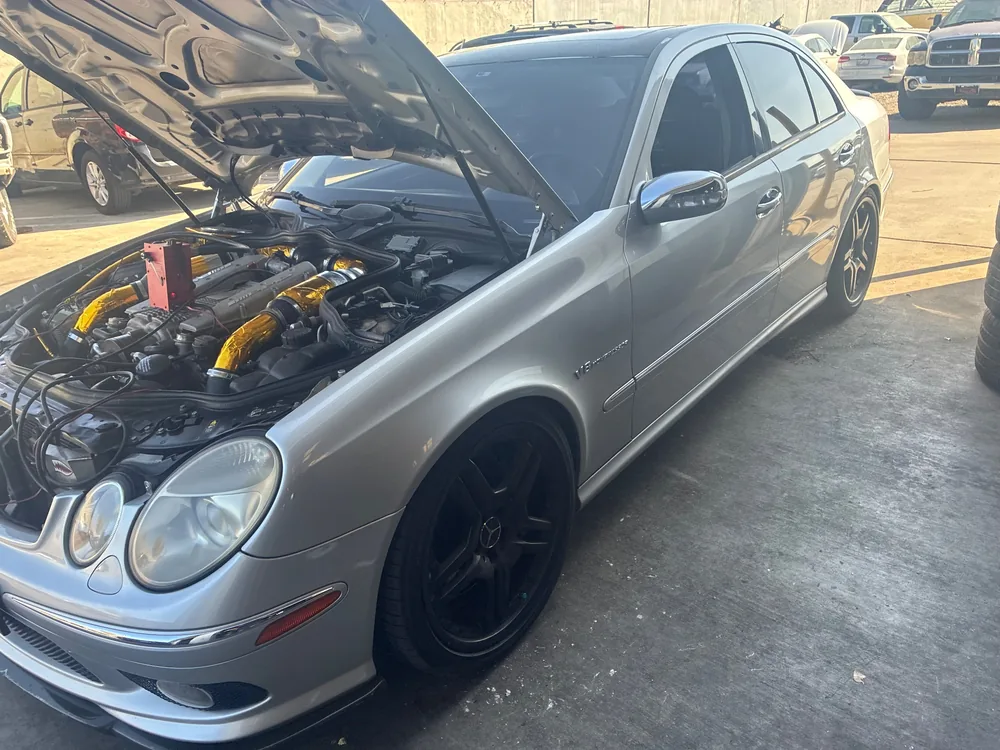

On this E55 the smoke machine sat right on top of the engine. This is the supercharged 5.5 V8, with a lot of hoses and joints to check.

The Spot Our Tech Marked

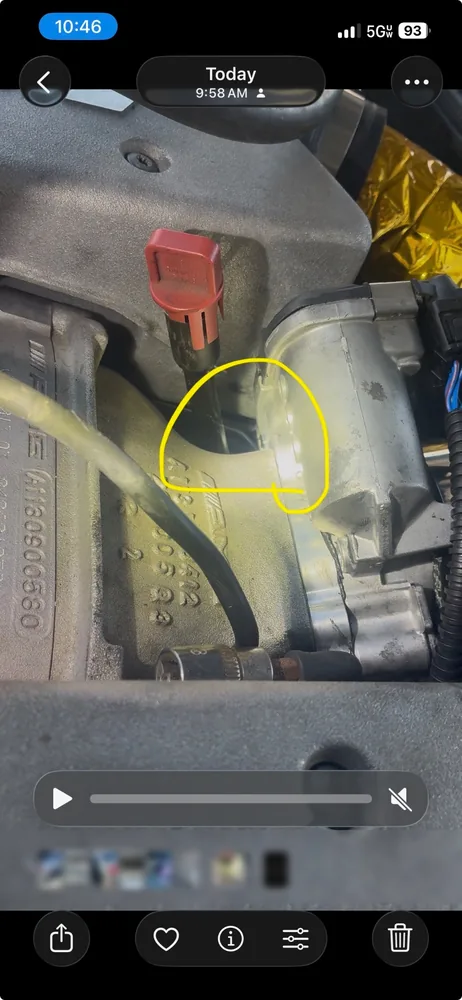

Our tech took a video during the test. Then drew a yellow circle on it to show the owner exactly where to look.
The circle sits on the joint where the throttle body bolts to the intake. That joint seals with a gasket.

The job lines show what came next. Two throttle body gaskets at $5.69 each, and one hour of labor at $150 to do the work.
That is the whole point of the test. A $150 hour of smoke told us where to spend the next hour. Nobody had to guess at hoses on a car like this.
2005 Mercedes E55 AMG, 123,318 miles, September 13
Came in for: a smoke test.
Tech marked: the throttle body joint on the intake.
What was done: two throttle body gaskets replaced.
Cost: $311.38. $150 test, $150 labor, $11.38 gaskets.
The video, the circle and the job lines all live on the same job in Shop Desk. Our San Jacinto shop built it, and any mechanic can use it free.
What the Record Does Not Say
Start with what we do not know. The job record lists no complaint and no diagnosis. It has no code and no road test result. So we cannot tell you how this E55 ran before the job or after it.
What we can do is explain why a shop reaches for smoke on a car like this, and what to ask when the job is done.
Why Smoke Fits This Engine
Mercedes rated the E55 wagon of this era at 469 horsepower from a 5.5 liter supercharged AMG V8. Our record lists a 5.5 on this car. An engine like that has a lot of plumbing between the air filter and the cylinders.
A leak in that plumbing is not a small thing. An auto mechanic school guide lists rough idle and poor fuel economy from vacuum leaks, and lean running or misfires from intake leaks. That is general. Our record does not say this car did any of that.
The test is gentle. MOTOR magazine says a typical machine pumps smoke at about 1 to 1.5 psi, and a regulator vents anything over that. It calls it extremely unlikely that the machine would create a leak or damage a part.
It is also quick. MOTOR says a basic check can fill an engine in 60 to 90 seconds, and smoke can catch a leak long before it sets a trouble code. So a car with no code can still have a leak.
It beats the old way too. The same article says carb cleaner or propane can leave you guessing between parts that sit close together. Smoke shows which one is leaking.
What to Ask After the Gaskets
Ask for a retest. The school guide says to repair the leak, then retest the system to confirm it seals. Our record does not show a second smoke run, so we will not claim one.
In California, also think about smog. The state Smog Check rule fails a car if the check engine light stays on with the engine running, or if the system reports a trouble code.
Clearing a code is not a shortcut. The Bureau of Automotive Repair says readiness monitors can take time and certain driving to set, mostly after repairs or a battery disconnect. Plan some real driving before a test. On a car with 123,318 miles, give it time to prove the fix.
Quick Hits
What is a smoke test on a car?
A machine pushes harmless smoke into the intake. Wherever smoke comes out, air is leaking in. It shows a vacuum leak you cannot see.
How much is a smoke test?
On this E55 the smoke test was $150 for one hour.
How much did the throttle body gaskets cost?
Two gaskets at $5.69 each, $11.38. Labor to fit them was one hour at $150.
Do you work on Mercedes AMG cars?
Yes. This was a 2005 E55 AMG with the supercharged 5.5 V8.
Will I see where the leak is?
Yes. On this car our tech drew a circle on the video so the owner could see the exact spot.
Supercanic tip: If a shop wants to replace a pile of hoses to chase a vacuum leak, ask for a smoke test first. It is one hour and it points at the spot. Call us at (951) 904-2477.
