15 Foot Trailer Broken Down in Riverside: A Faulty Breakaway Plug Was Setting the Brakes

A 15 foot trailer broke down in Riverside. We quoted hub work. Our tech found a faulty breakaway plug was setting the brakes on its own.

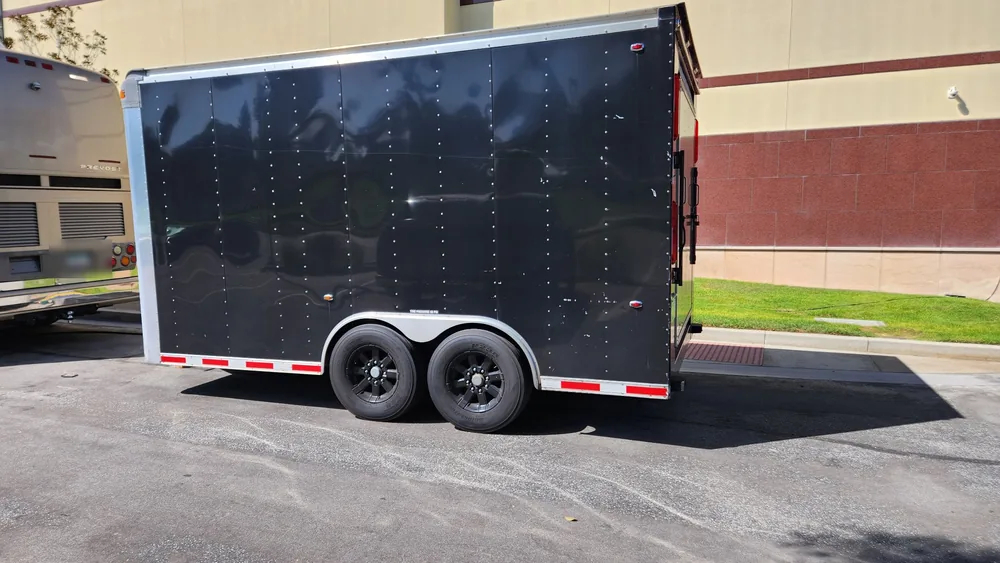

A black 15 foot enclosed cargo trailer broken down in a parking lot in Riverside Real Supercanic Job Photo
The trailer where it stopped, in a Riverside parking lot.

Quick answer. A 15 foot cargo trailer broke down in Riverside. The first quote planned for wheel hub work on both sides. When our tech got there, the real problem was electrical. A faulty breakaway plug was setting the trailer brakes on its own.

Recap Up Front

  • The call came in as a voicemail on our Riverside mobile line. A 15 foot trailer was broken down.
  • The quote listed a diagnosis, a hub on each side and a travel fee.
  • The tech found a faulty breakaway plug was turning the brakes on.
  • A breakaway system is meant to stop a trailer that comes loose. When it fails, it can lock the brakes on a trailer that is still hooked up.
  • The job record does not show the hubs being replaced, so we do not claim it.

Read our guides a lot? Star Supercanic as a source in Google and our new posts show up more often in your Top Stories.

The Call

It came in as a voicemail. A 2023 cargo trailer, 15 feet long, broken down in Riverside. The owner was from out of state and needed someone to come to it.

A trailer that will not roll usually points at the wheels. Hubs, bearings or brakes. So our desk built the quote around that.

Came in with

A 15 foot cargo trailer broken down in Riverside.

What was quoted

Mobile diagnosis of the hub assembly, 1 hour at $150. A hub on each side, 1.5 hours each at $125 an hour. Travel fee $150.

What the tech found

A faulty breakaway plug was setting the brakes.

The quote and the finding, from the job record.

What a Breakaway System Does

Trailers with electric brakes have a small battery box and a switch on the tongue. A cable runs from the switch to the tow vehicle.

If the trailer ever breaks loose, the cable pulls a pin out of the switch. The battery then slams the brakes on so the trailer stops by itself.

That is a good thing on the highway. It is a bad thing when the switch or plug fails while the trailer is still hooked up. The brakes come on and stay on. To the driver it feels like the trailer is broken.

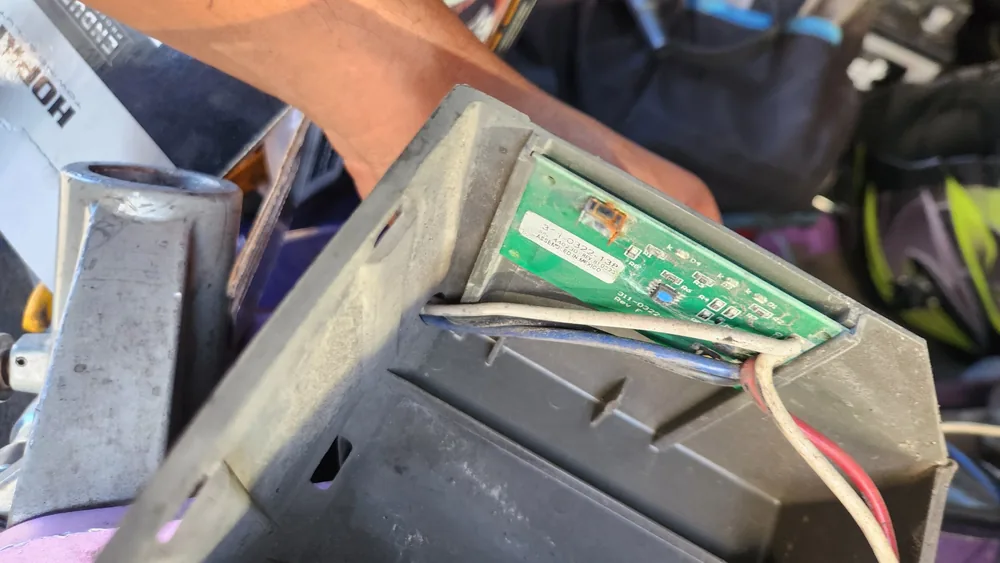

The breakaway battery box on a cargo trailer opened up to show its circuit board and wires
The breakaway box opened up. It powers the brakes when the pin comes out.

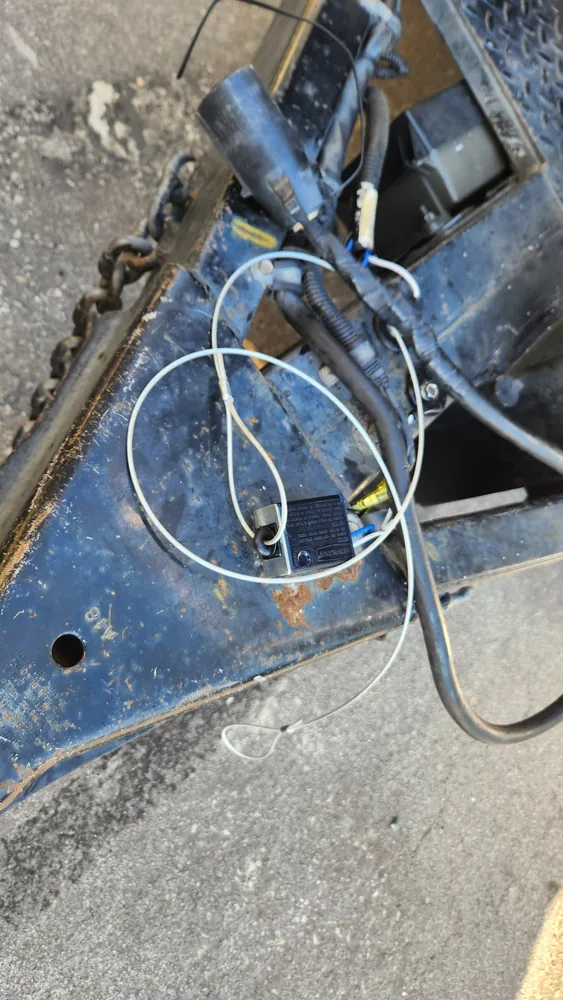

The breakaway switch and its pull cable on the tongue of a cargo trailer
The breakaway switch and pull cable on the tongue.

Why the Quote Did Not Match the Fix

Our quote guessed hubs. The test said breakaway plug.

That is why the first line on the quote was a diagnosis hour. A trailer that drags can be a seized hub. It can also be brakes being told to stay on. From the parking lot, they look the same.

The record does not show the hubs being replaced, and we will not say they were. What it does show is the tech wrote down what they found before anything else got done. Every job on Shop Desk works that way, ours and any other shop that uses it.

If Your Trailer Brakes Lock Up

Check the breakaway cable first. Make sure the pin is all the way in the switch and the cable is not caught on anything.

If the pin is in and the brakes still drag, do not keep towing. Hot brakes can start a fire and ruin the hubs too. Call a mechanic who will test the brake circuit before quoting hubs.

Never Bypass It to Get Moving

When you are stuck on the side of the road, the fast fix is to cut the wire and go. Do not do that. You lose the one thing that stops a runaway trailer.

Federal rule 49 CFR 393.43 says that on commercial trailers required to have brakes, the brakes must apply automatically and at once on breakaway. They must stay on for at least 15 minutes. If your trailer works for a business, that rule likely applies to you.

That 15 minute hold also tells you something. This system is built to clamp and stay clamped. So when it fires by mistake, it will not let go just because you keep pulling.

How the Circuit Can Fool You

It helps to know how small this system is. NAPA describes a pin on a cable about 4 feet long. The pin sits in a switch tied to a 12 volt battery at the front of the trailer. Pull the pin and the battery feeds the brakes.

Dexter's axle service manual shows the same layout. Its diagram labels the breakaway switch as the part that switches battery power to the brakes. So one bad spot in that short path can make good brakes act like bad hubs.

A breakaway fault is not the only electric cause, though. Dexter warns that a brake controller that jumps straight to high voltage keeps the brakes fully energized, which can cause harsh brakes and wheel lockup. It also lists shorted magnet coils and bare wires touching a grounded spot as common trouble. That is why the diagnosis hour comes first.

What to Check Before You Call

Start with the easy stuff. etrailer's tech answer for brakes that lock up says to check the system battery and wiring and make sure the pin is fully inserted in the switch.

Then hold your hand near each hub, not on it. If one is much hotter than the rest, tell your mechanic which one.

Tell the mechanic the trailer's make too. On this job the record had a 2023 trailer, 15 feet long, and no make or model.

What the Quote Had in It

The first quote was built around hubs. One hour to diagnose at $150, 1.5 hours per side at $125 an hour to replace a hub, and a $150 travel fee.

The tech's note then named the breakaway plug. The record does not show what the final bill was, and it does not show the plug being replaced. So we will not claim that either. If you get a quote like this one, ask which lines still apply after the test.

Quick Hits

Why would trailer brakes stay on by themselves?

One common reason is the breakaway system. If the switch or plug fails, it can send power to the brakes while the trailer is still hooked up. That is what our tech found on this trailer.

What is a trailer breakaway switch?

It is a switch on the tongue with a pin and a cable tied to the tow vehicle. If the trailer comes loose, the pin pulls out and a battery sets the brakes.

Can a mobile mechanic fix a trailer on the side of the road?

Yes. This one was looked at where it broke down in Riverside. The quote included a travel fee of $150.

How much is a mobile trailer diagnosis?

On this job the diagnosis was one hour at $150, plus a $150 travel fee.

Supercanic tip: Trailer feels like it is dragging? Look at the breakaway pin before you look at the wheels. Call us at (951) 904-2477.

Share This Guide Text It Facebook

What We Read

Cornell Law School, 49 CFR 393.43, Breakaway and Emergency Braking
Dexter Axle, 600 to 8K Complete Service Manual
NAPA Know How, Towing Safety Using a Trailer Breakaway Switch June 11, 2021
etrailer, Troubleshooting Why Trailer Brakes Lock Up While Driving April 23, 2024
